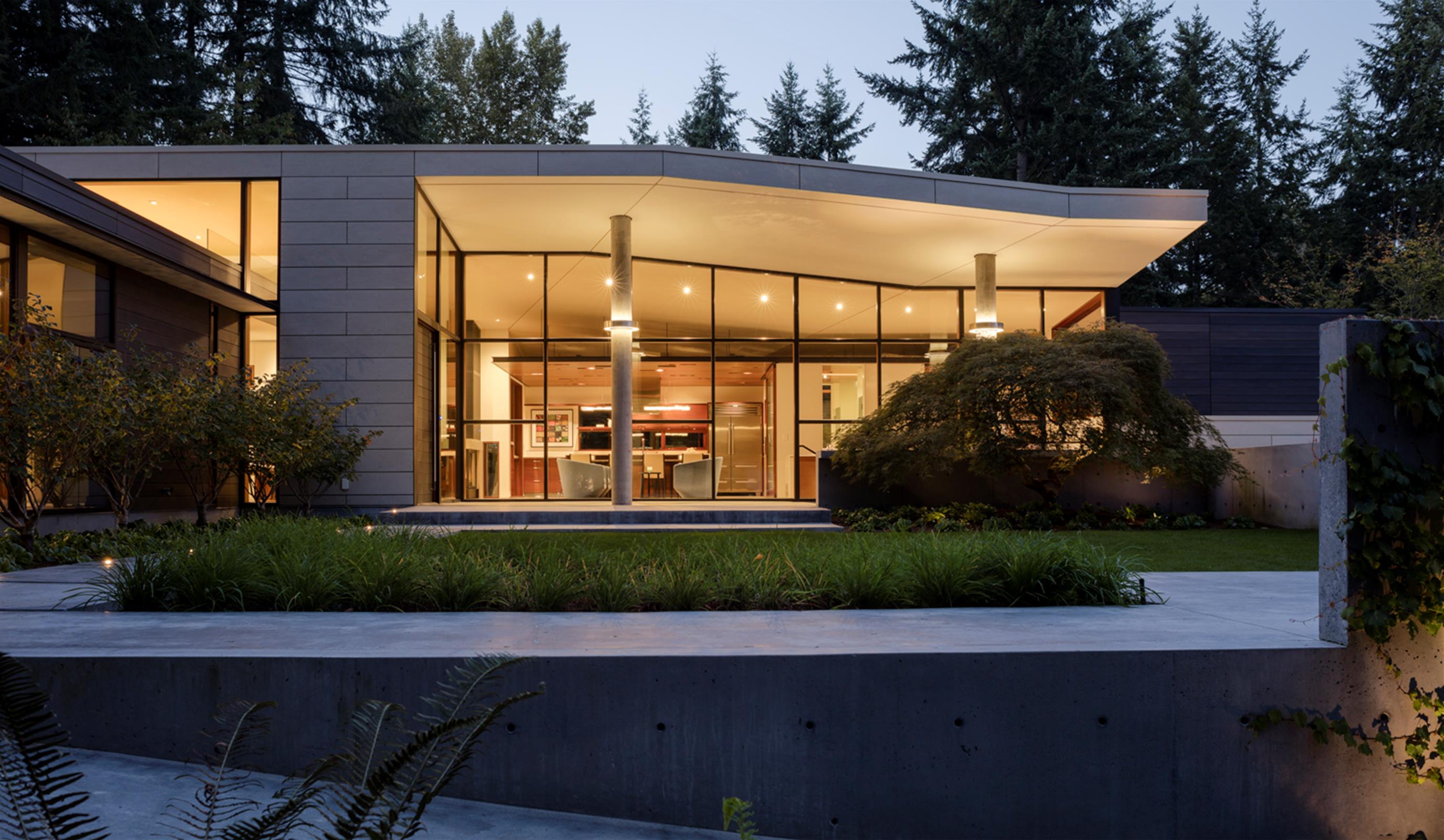

15-040-13A
15-040-02A
15-040-12A
15-040-10A
15-040-31A
15-040-03A
15-040-04A
15-040-38A
15-040-27A
15-040-19A
15-040-07A
15-040-20A
15-040-28A
15-040-33A
15-040-08A
15-040-09A
15-040-34A
15-040-32A
15-040-35A
15-040-14A

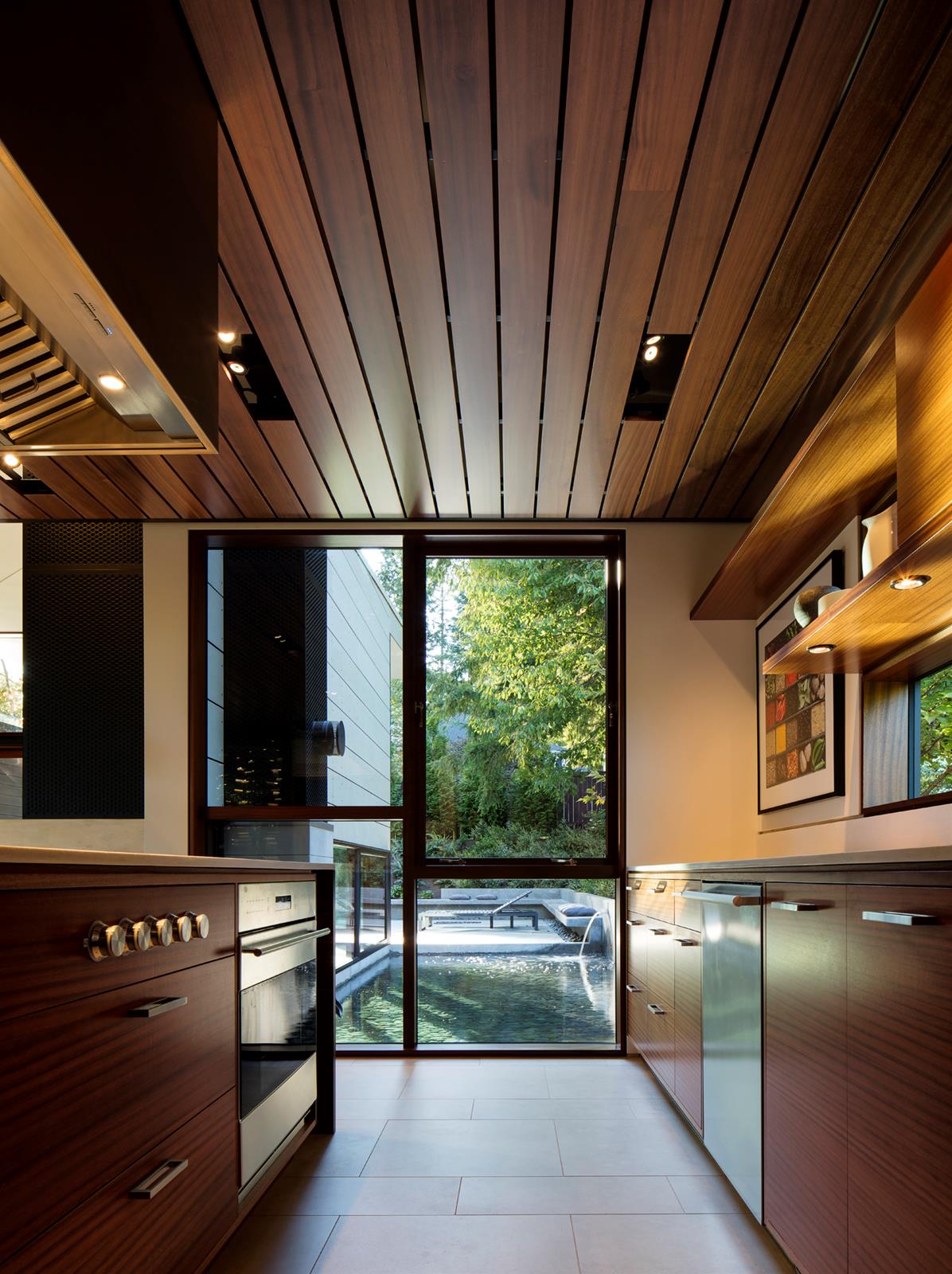

15-040-37A

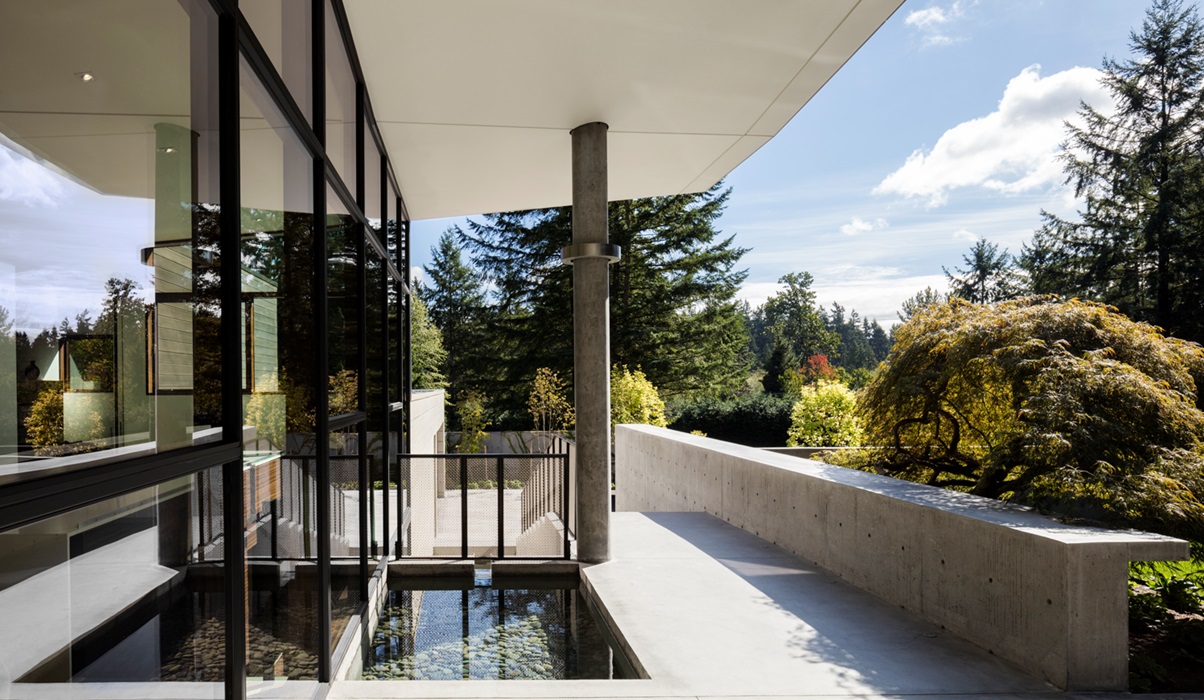

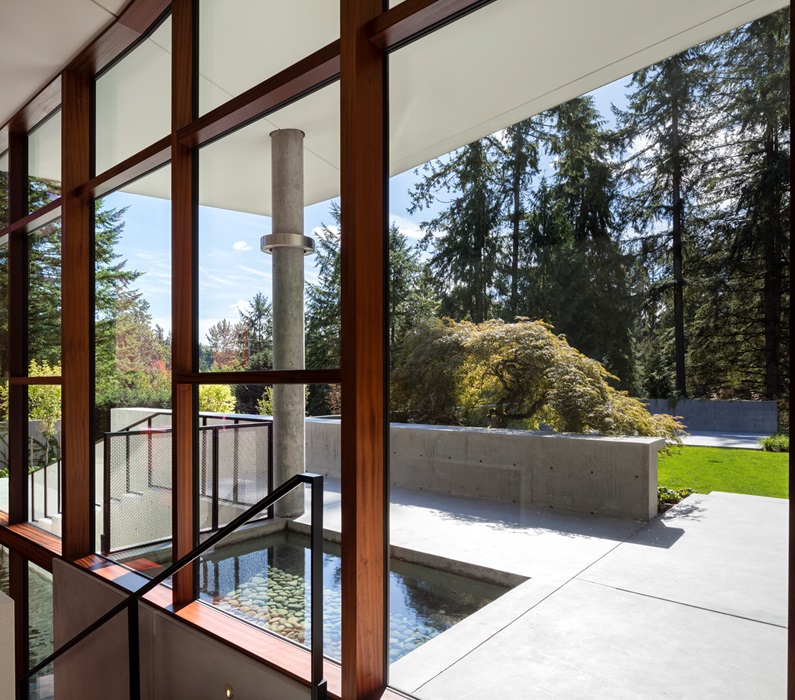

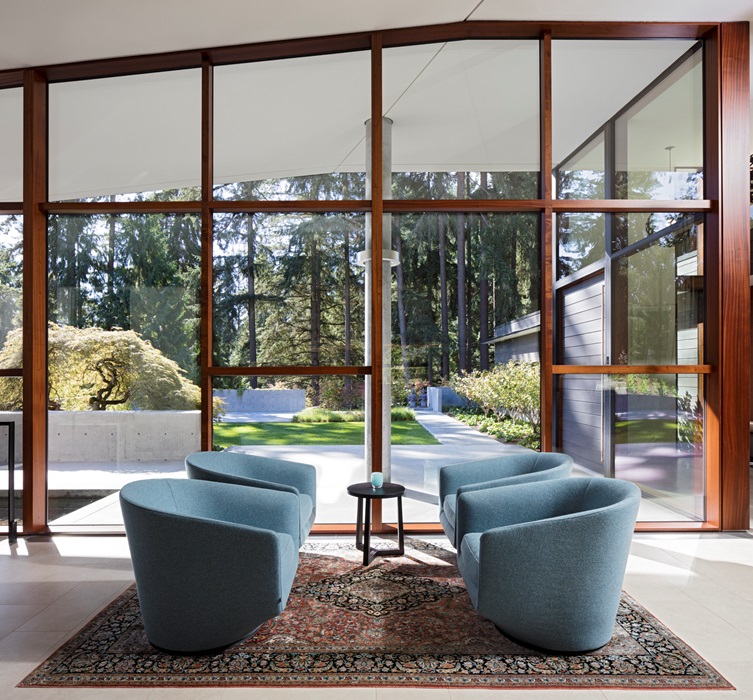

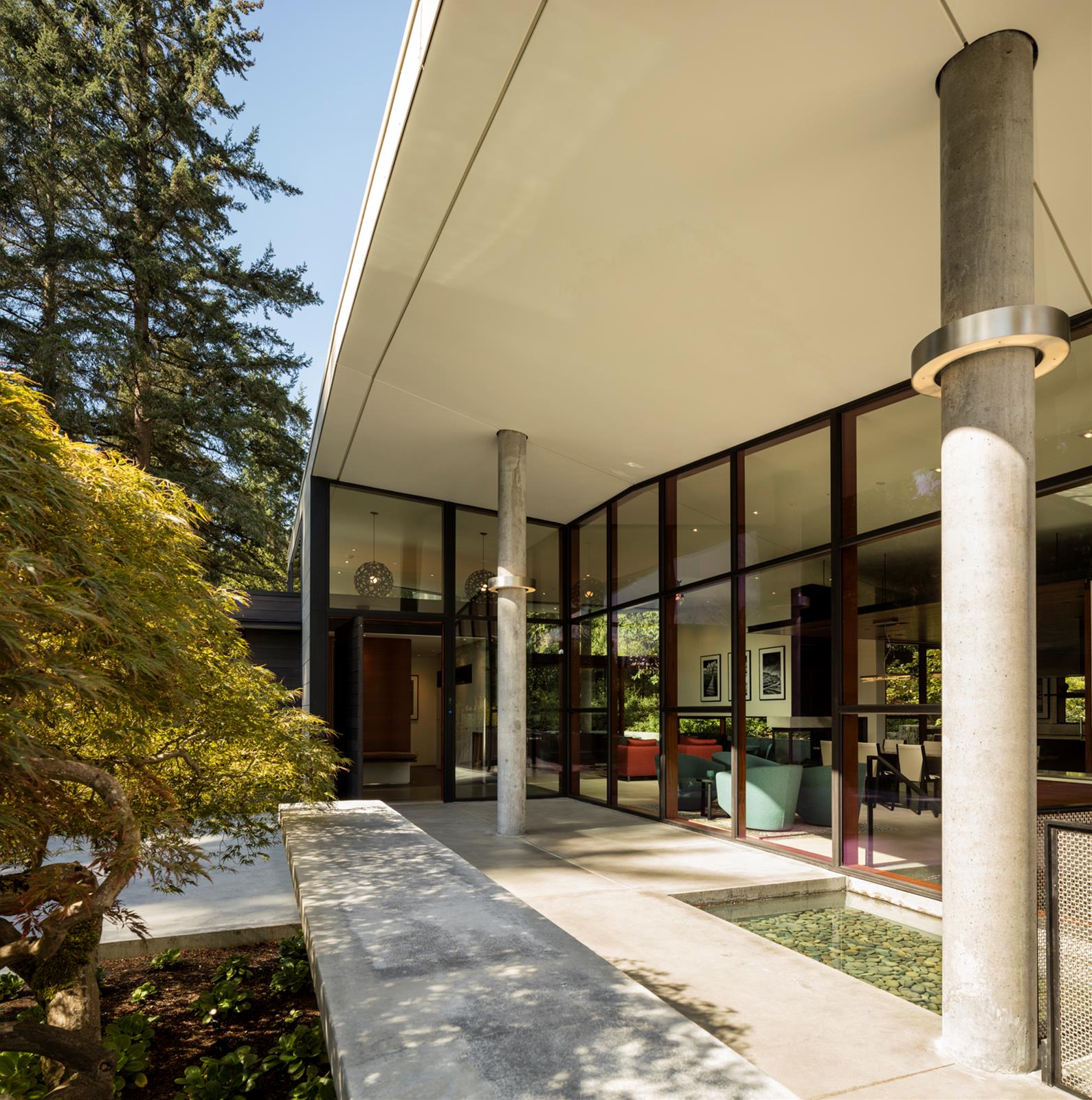

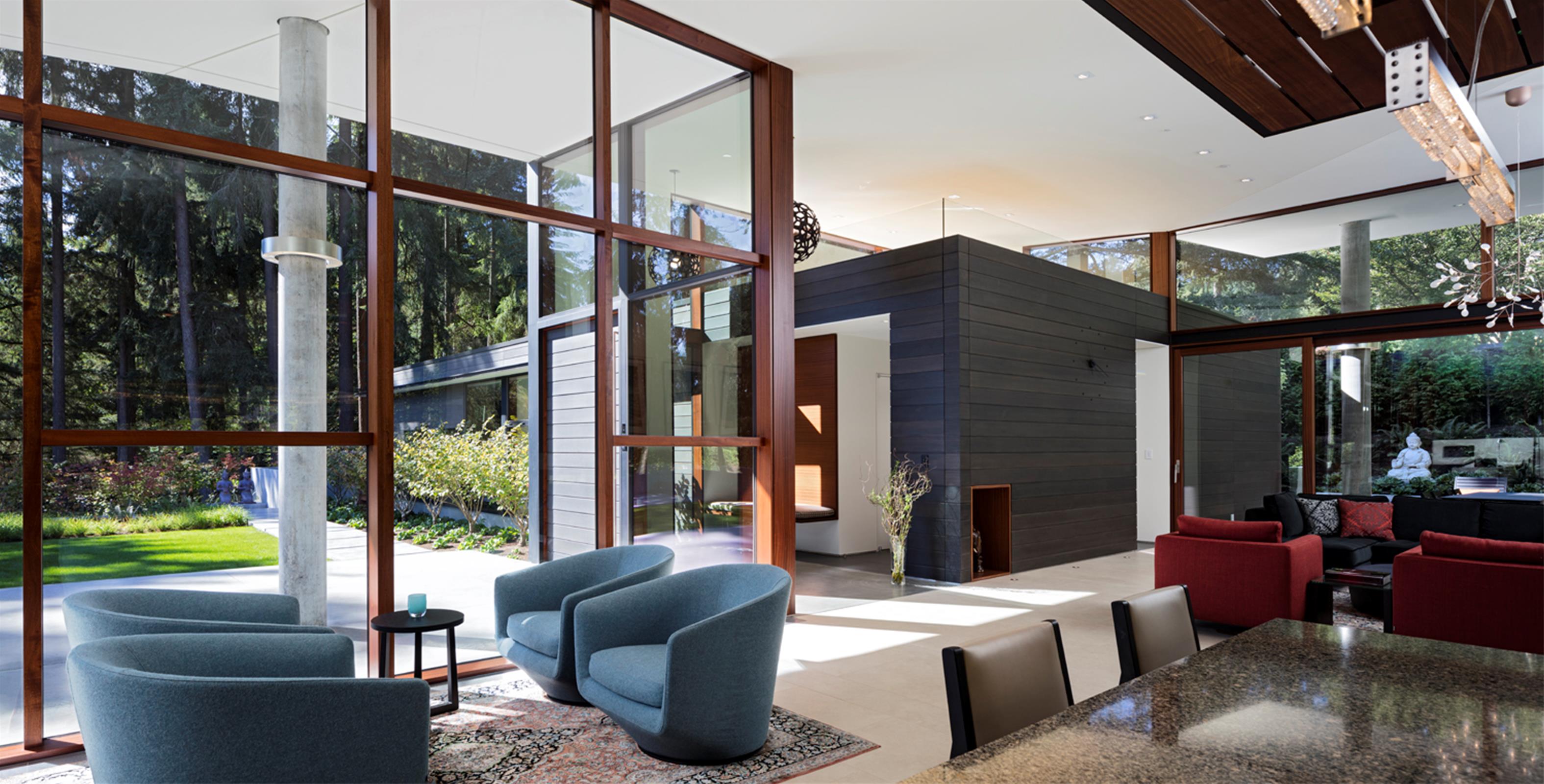

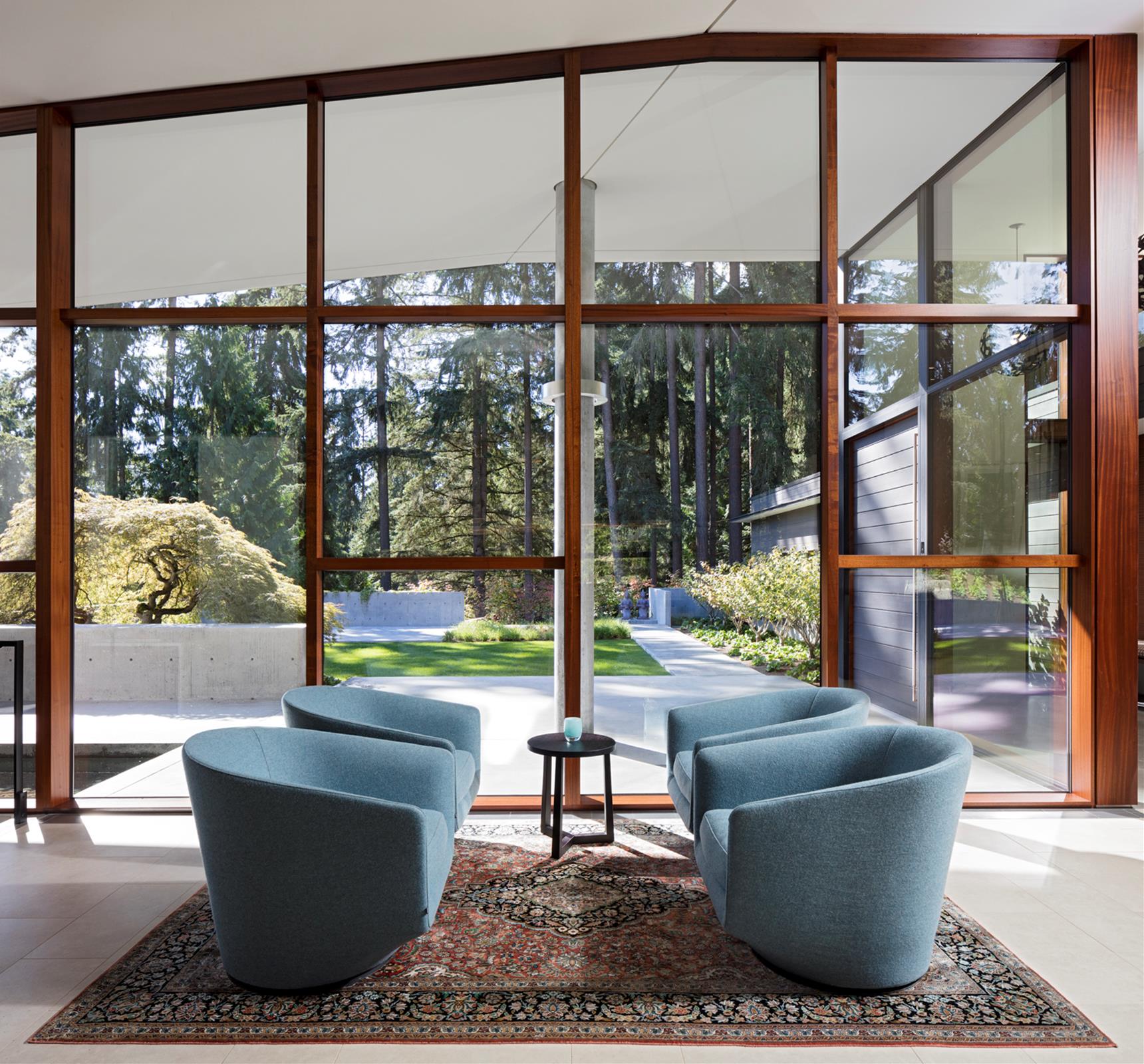

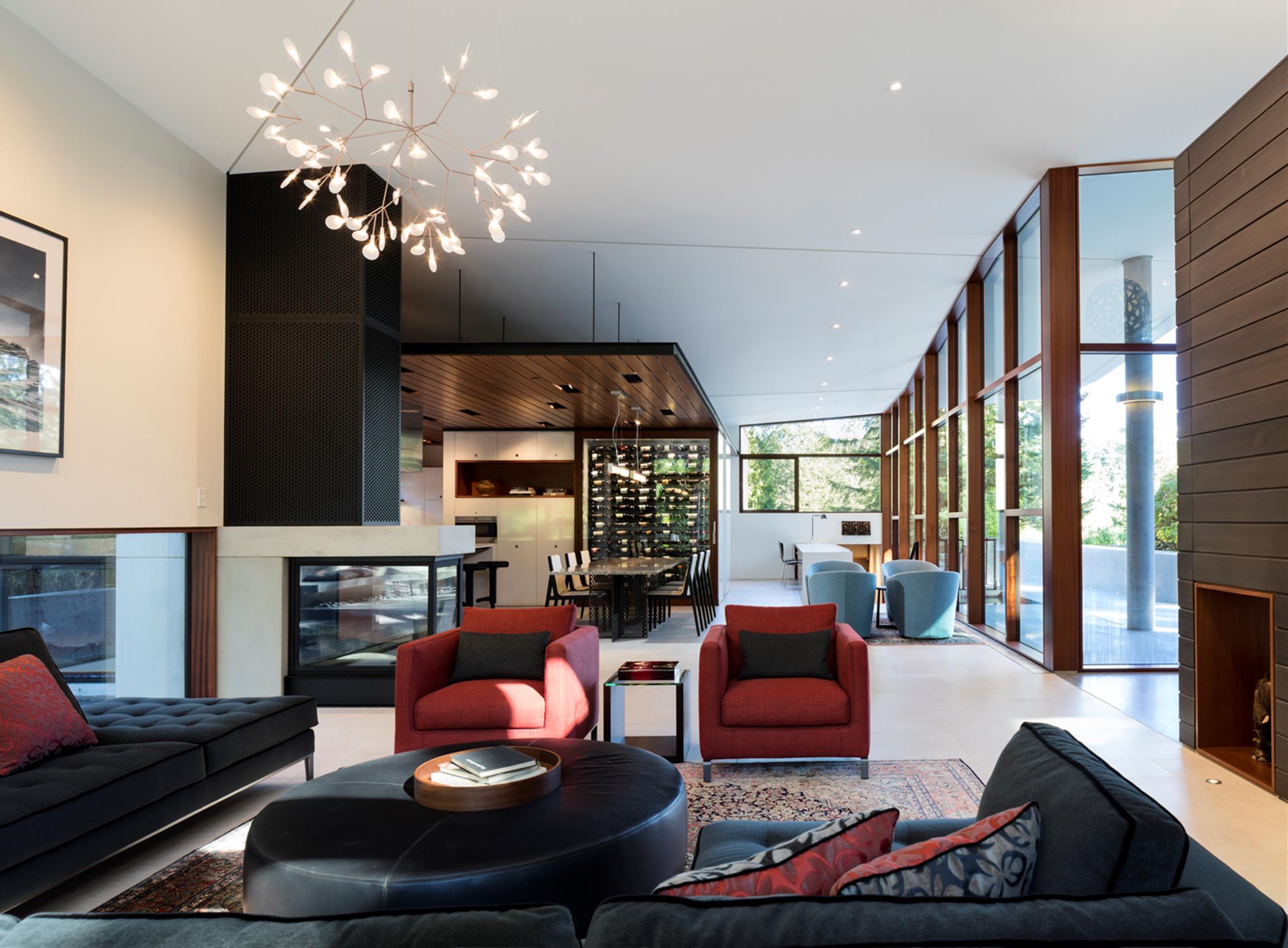

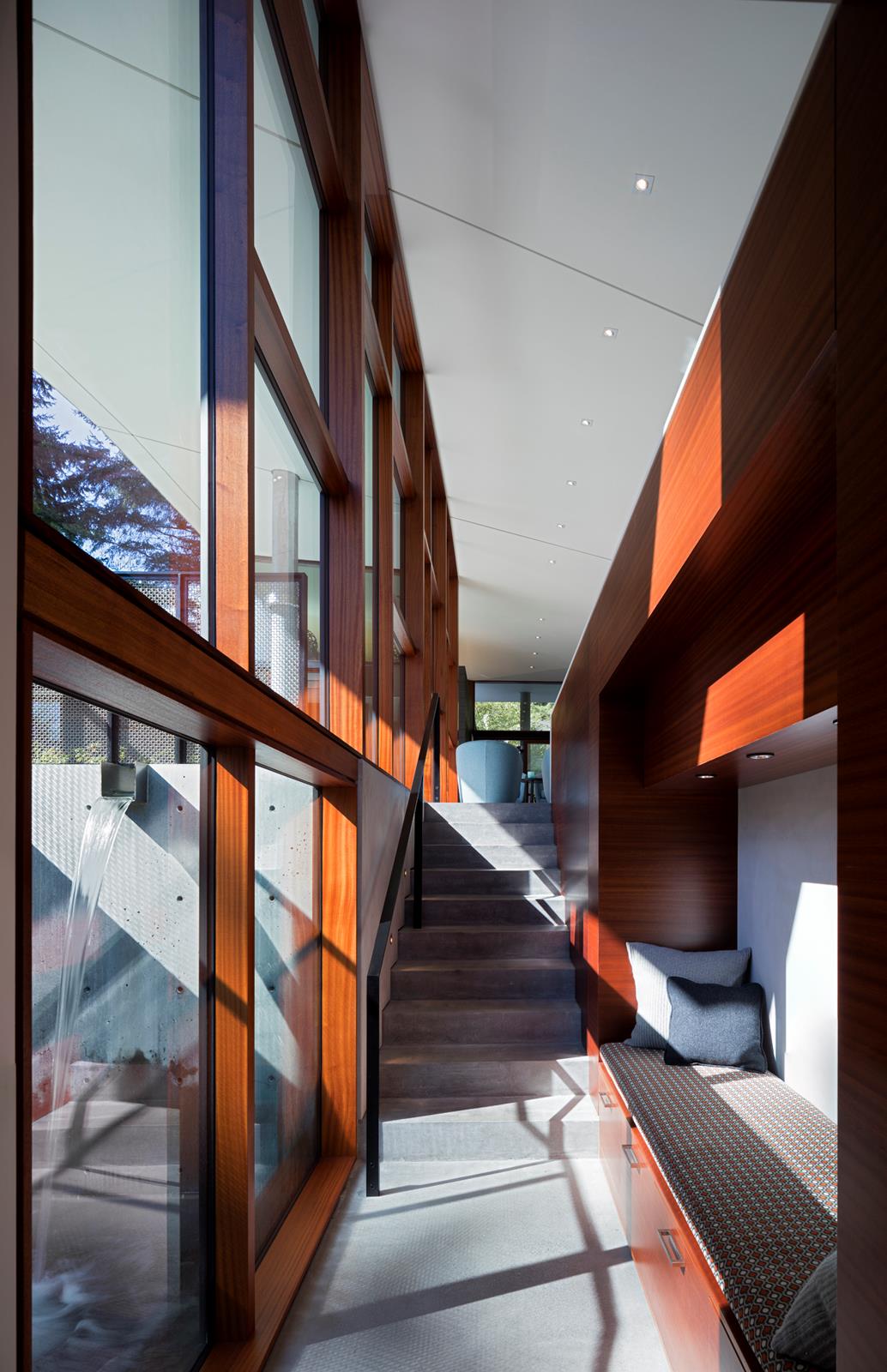

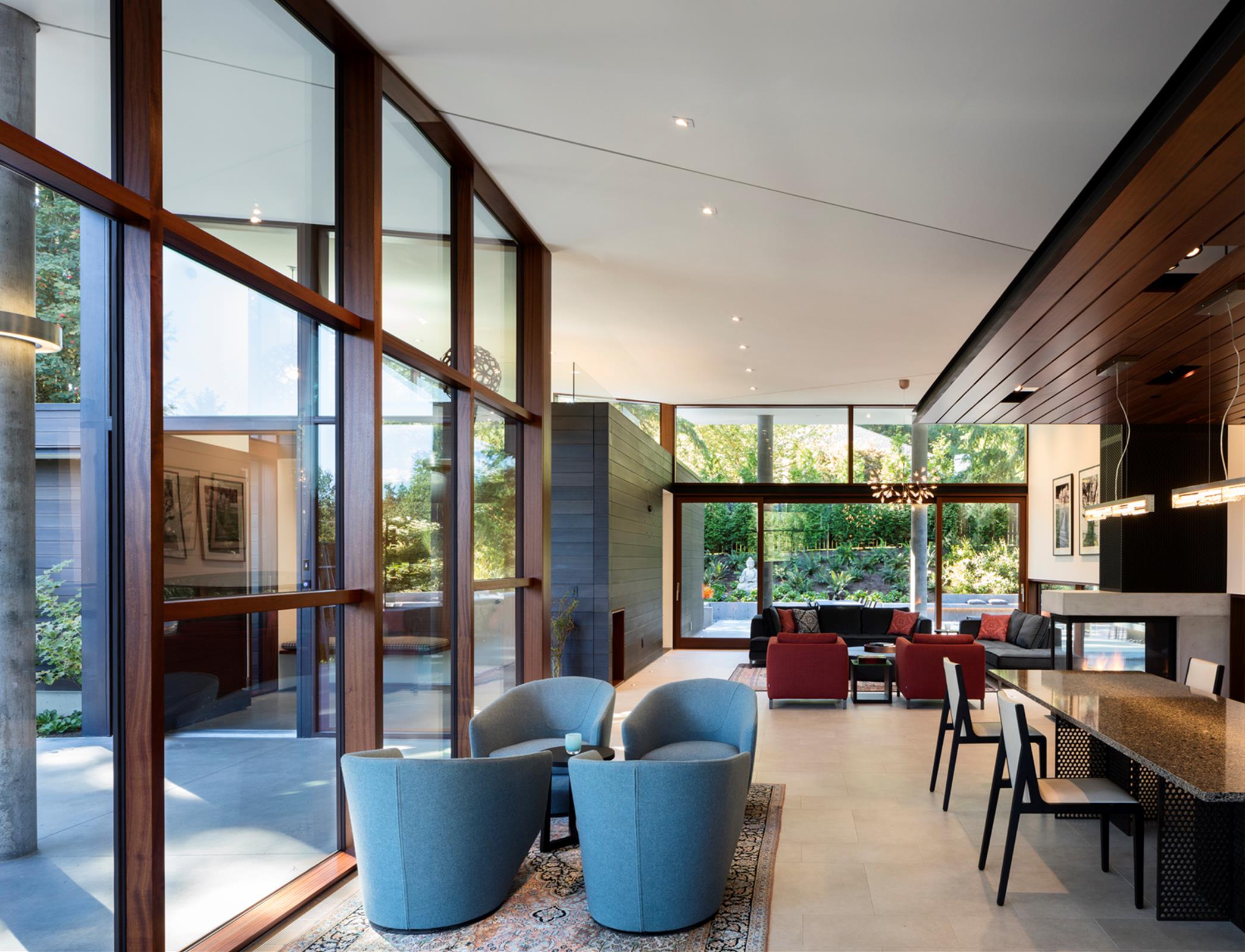

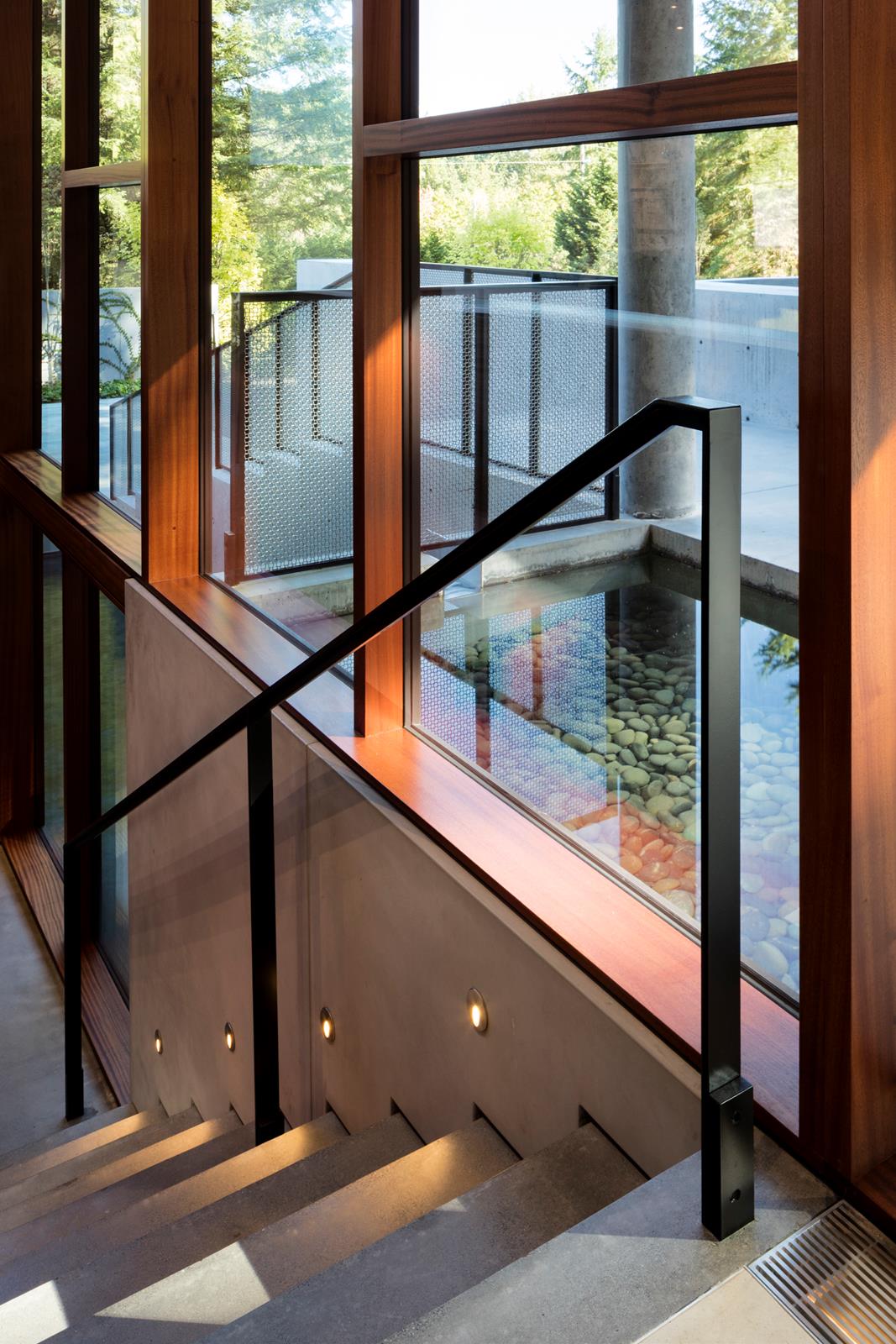

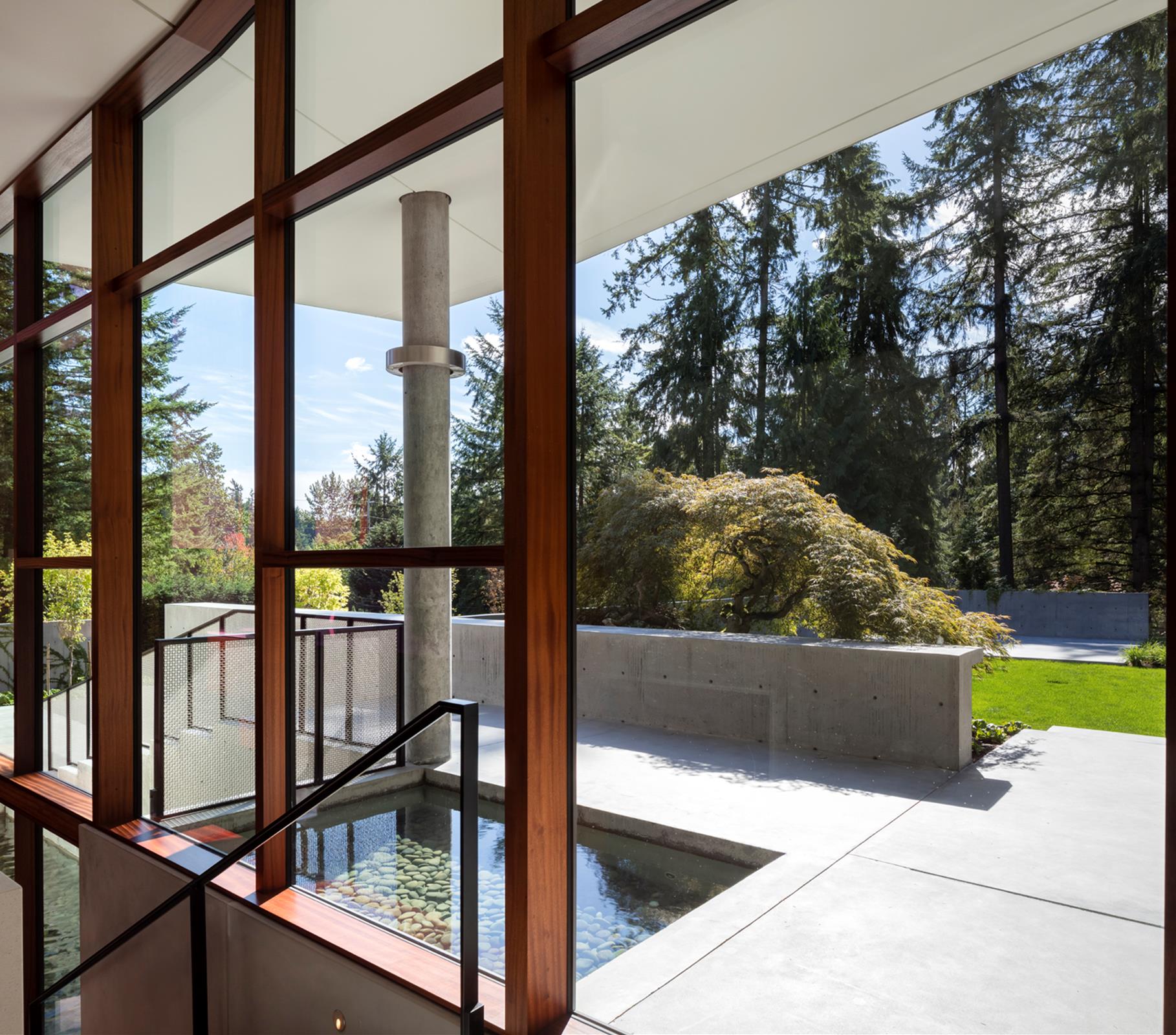

Inside Outside House features a massive Quantum Clad window wall with integrated Pivot Door that follows the slope of the roofline. The 45 foot window unit corners, slopes and flattens out multiple times. A portion of the wall follows the stairs down into a lower level where the assembly reaches its maximum assembled height over 17 feet. Common mullions were used for the majority of the glazing divisions providing necessary structure to the openings along with a narrow sightline and seamless appearance.

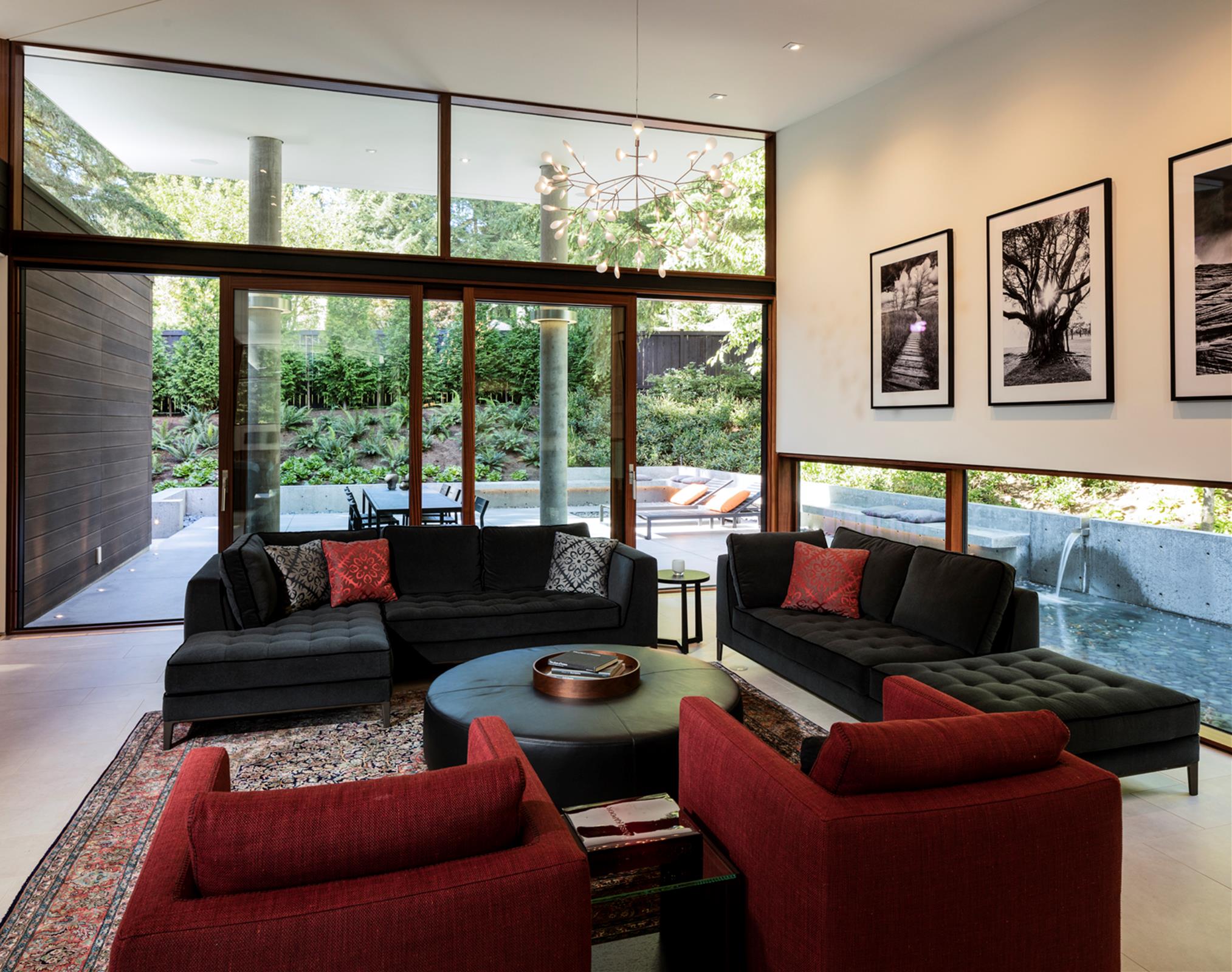

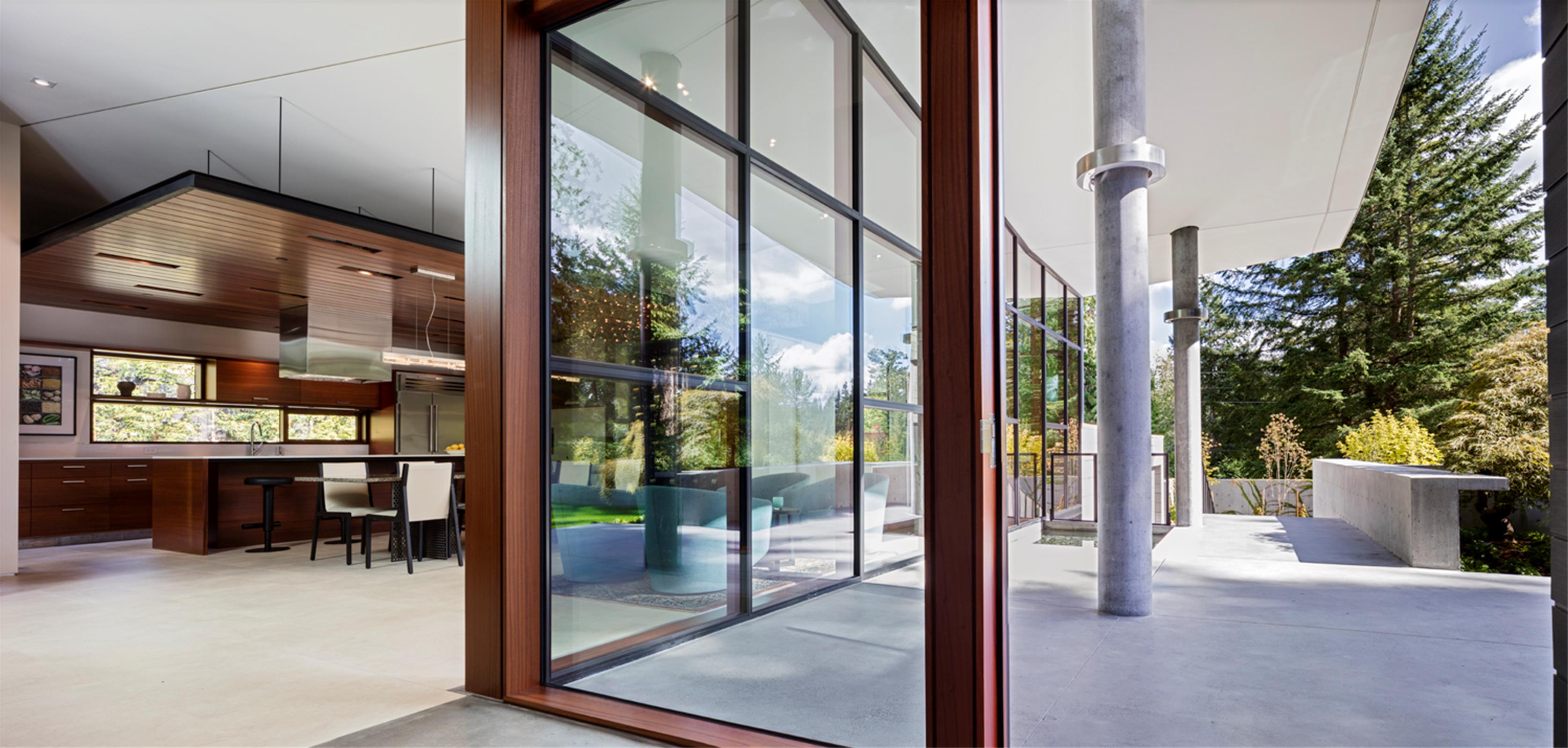

Unique patterns throughout the home are created using our Classic Series Windows in both fixed and oversize awning sashes allowing for ventilation. Asymmetric Lift & Slide Door Systems open an already bright and light-filled interior to the exterior spaces.

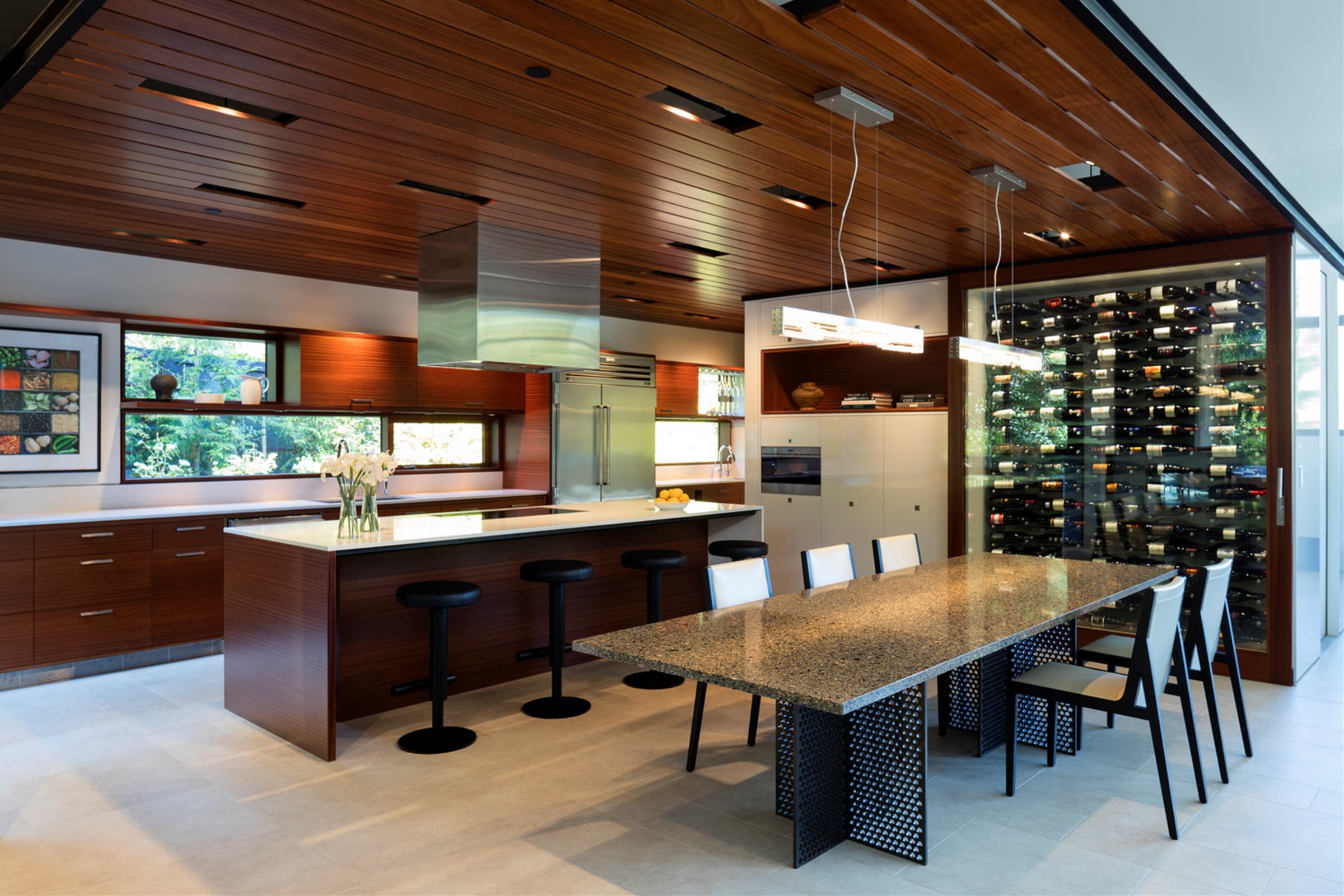

David Coleman / Architecture wanted a custom solution for an interior sliding door into a large wine refrigerator. We engineered a system using our Lift & Slide hardware negating the need for side jambs, and burying the head jamb and sill flush into the ceiling and flooring finishes, allowing a continuous flow above and below the door.

The media room called for the a flush wood panel to open up almost half of the wall. We engineered a single flush Lift & Slide Door panel measuring 140" x 100", weighing in at 650 lbs and painted to match the wall finish.
